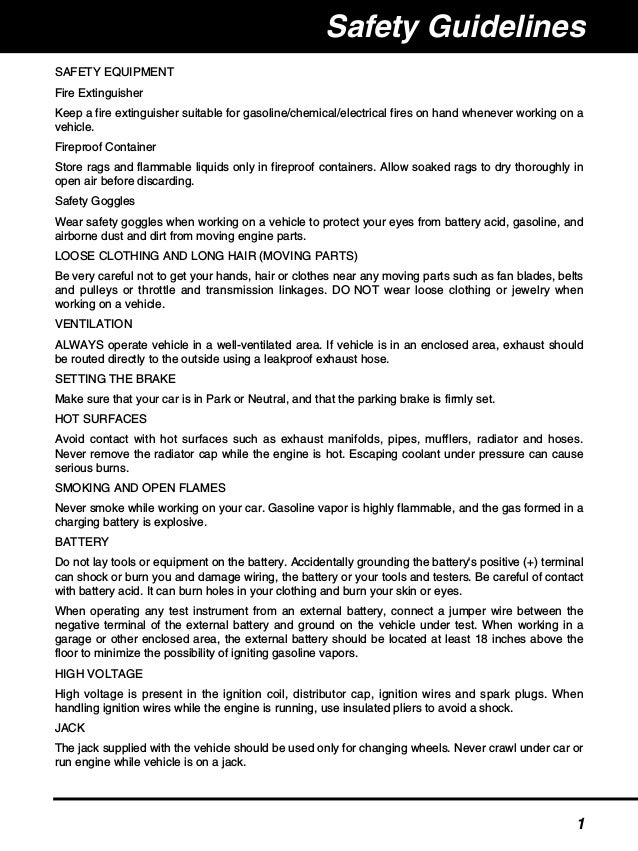

The INNOVA Timing Lights include a full range of options designed to meet the needs of DIYers with many of the features that professional installers demand. Their wide coverage, proven quality and competitive price make them the tool of choice for use on the vehicles of today and tomorrow. A timing light — in effect, a strobe light — is used in conjunction with the marks mentioned above. A cable attaches to your number one spark plug and detects the electrical pulse when the plug fires, sending an electronic signal to your timing light and causing it to flash. INNOVA® Advance Timing Light #3555. INNOVA® Advance Timing Light. Direct reading advance scale adjusts from 0° to 60° Advance dial enables user to check base timing, mechanical advance or retard, and electronic advance or retard applications; Slim, rotating barrel for better aim at timing mark; Detachable leads, metal inductive pickup.

Advertising

Checking Mechanical/Centrifugal Timing
Advance

1.

MAKE SURE the timing light Advance
Display shows 0 (zero) degrees. Press the
Zeroing Switch if necessary to obtain 0
degree indication.

2.

While performing an INITIAL (BASE)
TIMING CHECK as previously described,
slowly increase engine speed to the
manufacturer's specified rpm for mechani-
cal/centrifugal advance, and observe the
rotating timing mark for change. The timing
mark should appear to move smoothly, in
the opposite direction of engine rotation,
away from the reference pointer.

3.

Press the Advance Increment and Ad-
vance Decrement switches, as necessary,
until the rotating timing mark and the
reference pointer realign at the initial
(base) timing mark as previously re-
corded. Read the degrees of mechanical
or centrifugal advance on the LCD display.
See Figure 5.

4.

Note the degrees advance shown on the
LCD display, and compare this value with
the manufacturer's specification for
mechanical or centrifugal timing advance
for the rpm specified.

If the position of the rotating timing
mark does not change during the
mechanical/centrifugal advance
check, the mechanical weights asso-
ciated with your vehicle's mechanical
advance mechanism (if equipped)
may be rusted or binding.

5.

Innova

Repeat the test, as needed, for all engine
speeds specified by the manufacturer's
instructions.

Checking Vacuum Timing Advance

1.

With the engine off, disconnect the vacuum
hose from the distributor's vacuum advance
port. Plug the vacuum hose securely.

2.

Connect the vacuum pump to the
distributor's vacuum port. Do not apply
vacuum at this time.

3.

Start the engine and perform INITIAL
(BASE) TIMING CHECK as previously
described. Record the degree(s) of initial
(base) timing.

4.

Using the vacuum pump, apply the
manufacturer's specified amount of
vacuum to the distributor's vacuum port.

5.

Aim the timing light at the timing marks
and press the Advance Increment and
Advance Decrement switches, as
necessary, until the timing marks are
realigned to the initial (base) timing mark
as recorded in step 3.

6.

Innova Timing Light 3568 Manual Pdf

The difference between the reading
obtained in step 3 {initial (base) timing}
and the value obtained in step 5 is the
vehicle's vacuum advance. Compare this
value with the manufacturer's specifica-
tions for vacuum advance.

7.

Repeat the test, as needed, for each
amount of vacuum specified by the
manufacturer's instructions.

8.

Turn off the ignition and disconnect the
timing light and vacuum pump from the
engine. Unplug and reconnect the vacuum
hose to the distributor's vacuum port.

7

Innova Timing Light 3568 Manual

ADVANCE

DISPLAY

ADVANCE

INCREMENT

BUTTON

ADVANCE

DECREMENT

BUTTON

Fig. 5. Advance Control Knob Operation

NOTE

If timing mark movement is rough or erratic,
the mechanical advance system may be de-
fective. Service and repair the mechanical
advance system in accordance with the man-
ufacturer's instructions before continuing.

NOTE

Innova

A vacuum pump equipped with a vacuum
gauge is needed to check vacuum advance.
