2 Way Angle Valve Vs 3 Way Angle Valve

Posted on

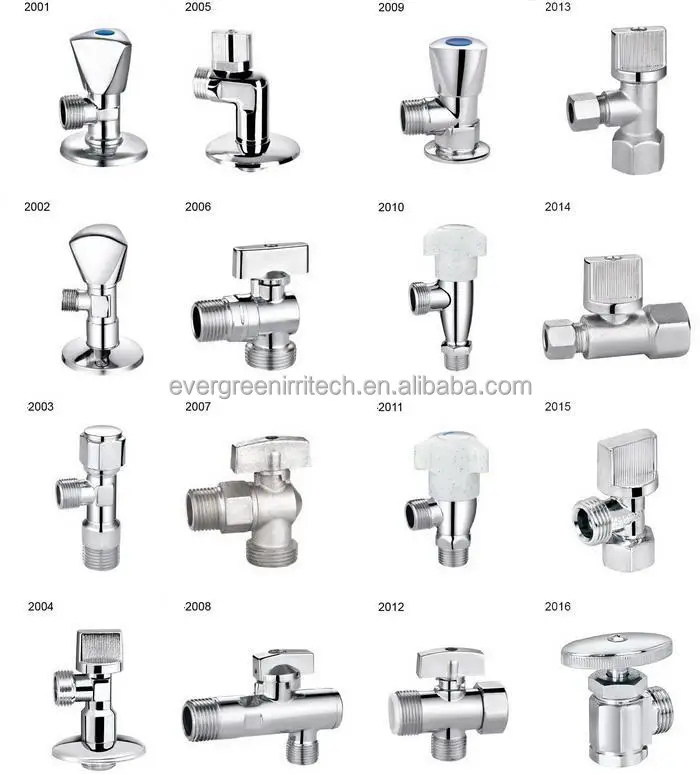

2 Way Angle Valve Vs 3 Way Angle Valve2 way angle stopValve

2-way valves are pretty simple and straight-forward. A 2-way valve is any type of valve with two ports: an inlet and an outlet port, typically labeled “A” and “AB” respectively. 2-way valves are used in many applications, from basic on/off to more complex variable flow applications with pumps and VFDs. The type of valve you need for an application depends on the amount of flow, the degree of control, shut-off, and pressure drops over the valve.

2/2 way angle type on/off control valve (self.airaeuro1) submitted 2 minutes ago by airaeuro1 We aira euro automation manufacturer and exporter of 2/2 way angle type on/off control valve in ½” inch to 4” inches size range. 2-way valves are recommended in Primary only Variable speed pump. To maintain a minimum flow across chiller, a motorised bypass valve is used across the headers in this system 3. When there is a primary only constant speed pumping system is used,3-way valve is recommended. For this application2-way valves are not best suitable.

2 Way Angle Valve Vs 3 Way Angle Valve Stem

3-way valves have, yes, three ports, labeled “A”, “B”, and “AB”. Port “AB” is common to the “A” or “B” port. 3-way valves are commonly found in constant flow/volume pumping systems and can be either mixing or diverting valves. 3-way valves can be piped in the supply or return. If in the supply, then a diverting valve is used. If piped in the return, a mixing valve is used. Ball valves can be piped to be mixing or diverting, but globe valves require different bodies for mixing or diverting.

Way

Mixing applications have the 3-way valve configured with two inputs from the supply piping and one output to the return piping, thus mixing together two inputs before sending it out. Mixing valves are most commonly used with modulating control but can be on/off.

Way

Diverting applications have the 3-way valve configured with one input from the supply side and two outputs to the return piping. Albania 20192020 kitsempty spaces the blog. In general, diverting valves are more expensive than mixing valves.

Make sure to watch this short easy to understand video on control signals .

2 Way Angle Valve Vs 3 Way Angle Valve Wrench

Every valve has some sort of control actuator and control signal. It could be on/off, floating, or a proportional signal. Click here and watch this easy to follow, short, HVAC Tech School video and learn the easy way about HVAC control signals.

2 Way Angle Valve Vs 3 Way Angle Valve Coupling

  • belimo, control valve, honeywell, hvac controls, johnson controls
